Cables for Oil Industry

 Individual & Overall Screened & Armored Thermocouple Cable

Cables for Oil Industry

Applications

These cables are used with thermocouples for temperature measurements where hydrocarbon may be present.

Standards

IEC 60584-3; NF C 42-324

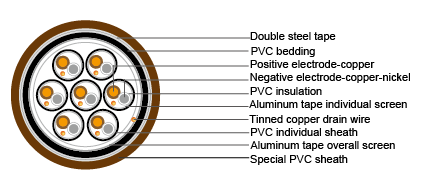

Construction

Conductor:

Metal according to thermocouple type

Insulation:

PVC

Individual screen:

Aluminum/polyester tape with tinned copper drain wire

Individual sheath:

PVC

Overall screen:

Aluminum/polyester tape with tinned copper drain wire

Inner sheath:

PVC

Armor:

Double steel tape

Sheath:

Special PVC. Color depends on thermocouple type

Properties

Flame retardance: NFC 32070 C2, IEC 60332-1-2

Operating voltage: 250V

Operating temperature: -20~60°C

Max. conductor temperature in service: 70°C

Chemical resistance: Aliphatic and aromatic hydrocarbon resistance

Conductor Size (mm sq) No, of Pairs Min. O.D. (mm) Max. O.D. (mm) Approx. Weight (kg/km)
0.5 solid 3 14.6 16.8 370
0.5 solid 7 19.1 22.0 590
0.5 solid 12 23.9 27.5 865
0.5 solid 19 28.8 33.0 1225
0.5 solid 27 33.2 38.2 1700
